Fixv1.34
Waypoint Alignment & Export Fixes
Improved
- Auto-focus search field when pressing 'A' to add gear (thanks /u/Super__Squirrel!)
- Patchlist CSV export now auto-capitalizes signal abbreviations (HDMI, SDI, DMX, etc.) (thanks /u/Super__Squirrel!)
- Patchlist CSV now shows actual port labels instead of internal IDs (thanks /u/Super__Squirrel!)
- Cleaner patchlist CSV headers (thanks /u/Super__Squirrel!)

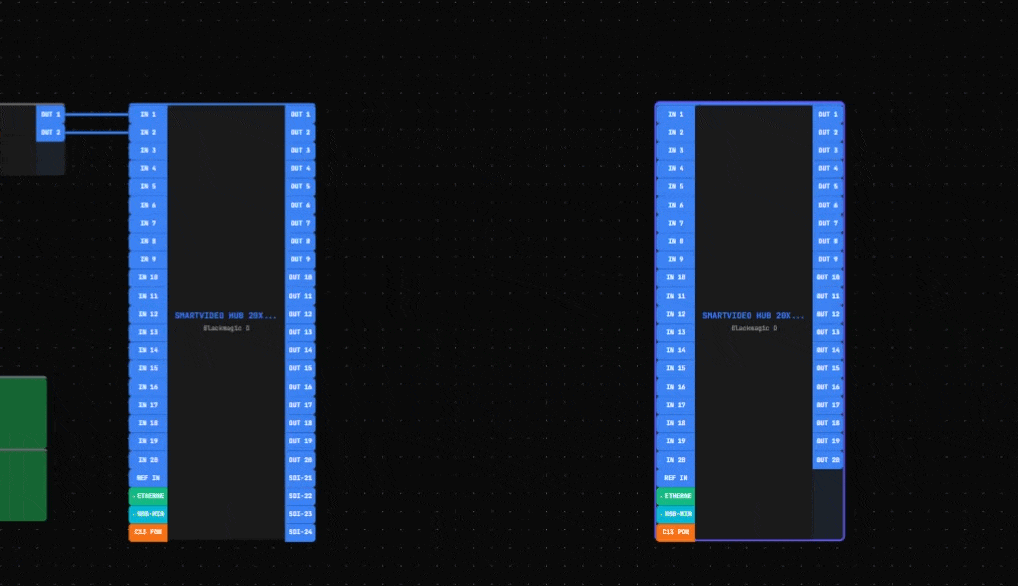

- Waypoints now snap to align with source/target lead-out points for perfect 90° turns (thanks /u/Super__Squirrel!)
- Waypoints auto-align with adjacent waypoints when within 15px threshold
- Smarter grid snapping - waypoints align with port positions for cleaner cable routing
Fixed
- Fixed IP addresses not saving with projects - now properly persists and exports to CSV
- Fixed PNG export having weird bar at top of image
- Fixed keyboard shortcuts not working with Caps Lock enabled (thanks /u/Super__Squirrel!)
- Fixed Invert Gear Colors toggle in Print Export - text now readable
- Fixed port stretching on nodes with mismatched input/output counts causing cable misalignment
- Fixed waypoint X-axis snapping not working correctly on output side
- Fixed cable connection point moving when adding waypoints
- Fixed batch port creation not allowing space at end of label before auto-number (thanks /u/Super__Squirrel!)
- Fixed changing output connector type incorrectly changing the port label (thanks /u/Super__Squirrel!)
- Fixed patch panel fiber ports only connecting in one direction (thanks /u/Super__Squirrel!)
- Fixed LED Wall middle connection points not being connectable (thanks /u/Super__Squirrel!)
- Fixed LED Wall tile height calculation (960 not 961 for 192px tiles) (thanks /u/Super__Squirrel!)
